Bộ chuyển mạch ma trận Polytron SAT IF Switch Matrix ESM 1716

Bộ chuyển mạch ma trận POLYTRON ESM 1716 cung cấp, ứng dụng linh hoạt với tín hiệu vệ tinh SAT IF (DVB S, DVB S2) và tuỳ chọn 1 tín hiệu số mặt đất (DVB T/T2) cho các hệ thống xử lý và phân phối tín hiệu, hệ thống truyền hình vệ tinh, giám sát và trung tâm Head-end cũng như các trạm kiểm tra.
Chuyển mạch ESM 1716 có hỗ trợ điều khiển dựa trên trình duyệt web, chuyển mạch ma trận ESM 1716 cho phép điều chỉnh tín hiệu đầu ra dễ dàng và nhanh chóng với các yêu cầu thay đổi.

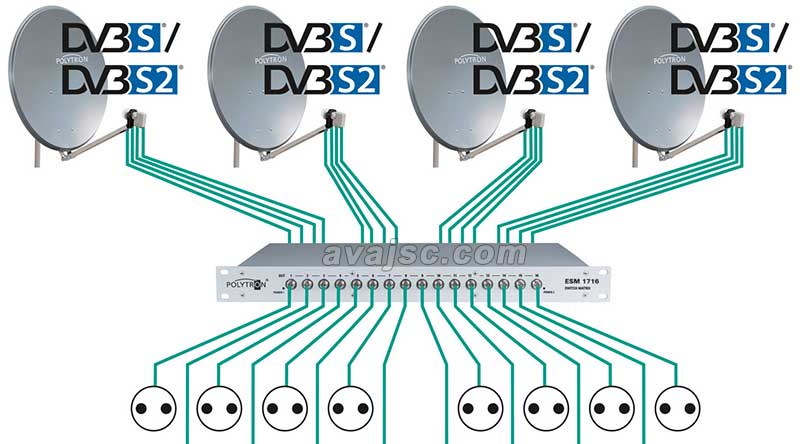

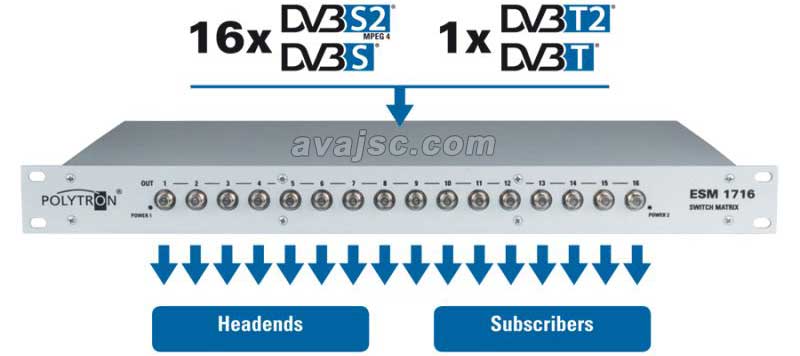

Ma trận chuyển mạch có 16 đầu vào vệ tinh và 1 đầu vào số mặt đất. Các mức phân cực được chọn có sẵn ở 16 đầu ra.
Các model của bộ chuyển mạch ma trận vệ tinh Polytron

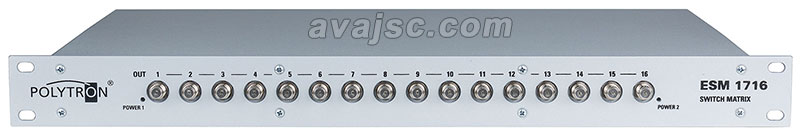

1. ESM 1716 FX 17 into16 switch matrix, fix multi switch operation, 19'' housing. Code: 5552290. Bộ chuyển mạch 17 ngõ tín hiệu vệ tinh (tuỳ chọn 1 DVB T) vào.

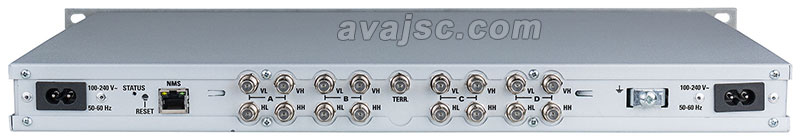

2. ESM 1716 WEB 17 into16 switch matrix, comfortable remote control via web browser, 19'' housing. Code: 5552282. Bộ chuyển mạch 17 ngõ tín hiệu vệ tinh (tuỳ chọn 1 DVB T) vào hỗ trợ cài đặt qua web.
3. ESM 1716 WEB RS 17 into 6 switch matrix, comfortable remote control via web browser, 19'' housing, redundant power supply. Article no: 5552286. Bộ chuyển mạch 17 ngõ tín hiệu vệ tinh (tuỳ chọn 1 DVB T) vào hỗ trợ cài đặt qua web và hỗ trợ cấp nguồn dự phòng. Đây là model cao cấp nhất.

Features SAT IF Switch Matrix ESM 1716
With web based control
POLYTRON’s switch matrix ESM 1716 flexibly supplies SAT IF and terrestrial signals to signal processing and distribution systems, monitoring and recording systems as well as test stations.
The web-based control of the switch matrix allows easy and quick adaption of the output signal to changed requirements. The input distribution of the switch matrix remains unchanged.
The switching matrix features 16 satellite inputs and a terrestrial input. The selected polarization levels are available at 16 outputs.
- Made in Germany
- Version with redundant power supply available: ESM 1716 WEB RS (Article no. 5552286)
- Version without web browser functionality for a fix multi-switch operation available: ESM 1716 FX (Article no. 5552290
Range of application
E.G. as input distribution panel for head-end systems:
- Quick reaction to changed transponder frequencies.
- Easy customization of the program offer (e.g. foreign language programs in hotels).
- Easy activation of smart cards, whose activation data are on a different transponder.

Specifications SAT IF Switch Matrix ESM 1716
Model: ESM 1716 WEB Article no. 5552282
Model: ESM 1716 WEB RS Article no. 5552286
Model: ESM 1716 FX Article no. 5552290
Inputs: 17
Outputs: 16
Impedance inputs / outputs: 75 Ohm
Frequency range input SAT: 950...2150 MHz
Frequency range output: 10...2150 MHz
Frequency range Terr. (optional): 18...862 MHz
Connection loss terr. (optional): 16 dB
Connection loss SAT: -4...0 ±1,5 dB
Isolation lines: 30 dB
Return loss inputs/outputs: 12 dB
Max output level SAT: 103 dBµV
Max output level terr. Passive
LNB voltage: 15 V
LNB supply max. 500 mA, in total 2000 mA
Power consumption outputs: 35 mA
Power supply: 90...265 VAC (47...63 Hz), 15 VDC / 3,3 A
Dimensions (WxDxH): 482,6 x 310 x 44,5 (19 inch)
Temperature range: 0...55 °C
