iDirect X5 Satellite Router - Modem
Hãng | Idirect |
Model | iDirect X5 Satellite Router |
Xuất xứ | US / Asia |
Chức năng | Dùng trong VSAT |
Hỗ trợ | BUC lên đến 70W |
Tình trạng | Order 10 ngày |
Bảo hành | 12 tháng |
Hàng | Mới, đủ CO, CQ |
Giá: 89.000.000đ
Giá trên chưa bao gồm VAT

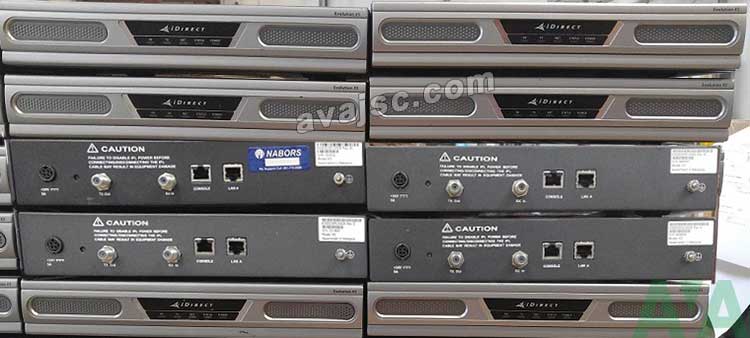

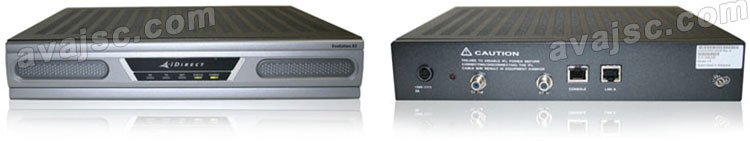

Modem vệ tinh iDirect X5 - iDirect X5 Satellite Router
Modem vệ tinh iDirect X5, iDirect X5 Satellite Router dùng trong VSAT có ngõ TX và RX hỗ trợ thu phát tín hiệu, dữ liệu qua vệ tinh thông qua BUC
Modem vệ tinh X5 / Router vệ tinh X5 là sản phẩm của Idirect, có tính năng hoạt động hiệu quả trên tiêu chuẩn DVB-S2 với Mã hóa và điều chế thích ứng (ACM).
Idirect X5 được thiết kế với kết nối băng thông rộng thông qua IP hiệu suất cao, tốc độ cao, mặt khác được thiết kế đặc biệt để hỗ trợ các ứng dụng quan trọng trong kinh doanh
Router X5 phù hợp lý tưởng cho các ứng dụng băng thông hiệu suất cao như kết nối doanh nghiệp, truyền dẫn di động, hàng hải, bảo mật dữ liệu ngân hàng và các ứng dụng di động khác.
Đặc trưng Modem vệ tinh X5 / Router vệ tinh X5
Cấu trúc liên kết sao hỗ trợ Downstream DVB-S2 or (iNFINITI TDM) / Upstream ATDMA or (SCPC Return)
Hỗ trợ hai chế độ hoạt động: iNFINITI hoặc DVB-S2 / ACM
Kênh (return) thích ứng TDMA hoặc SCPC
Điều khiển nguồn Uplink end-to-end tự động
Tuỳ chọn ôcng nghệ dạng sóng trải phổ để có thể hỗ trợ ăng ten rất nhỏ
Mã hóa AES 256-bit tùy chọn

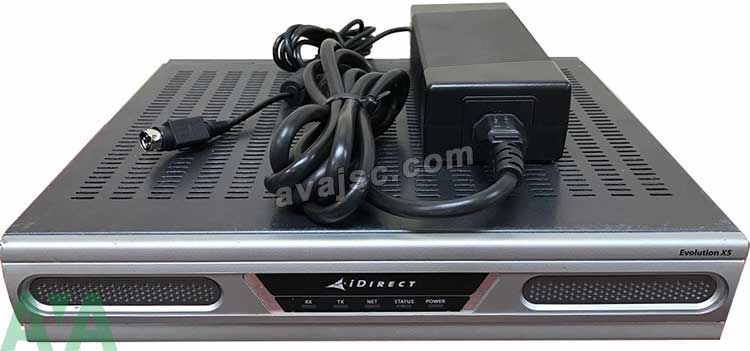

Evolution X5 Series Satellite Router Features:
High-speed, High-performance IP Broadband Connectivity Designed specifically to support business-critical applications, the Evolution X5 is ideally suited for high-performance broadband applications such as enterprise connectivity, cellular backhaul, maritime, secure banking, and other mobile applications.
The Evolution X5 features iDirect’s highly efficient implementation of the DVB-S2 standard with Adaptive Coding and Modulation (ACM) on the outbound carrier.
Along with Adaptive TDMA technology or SCPC Return, 2D 16-State FEC, the Evolution X5 maximizes the efficiency of satellite capacity to enable new opportunities.
Greater Flexibility
The Evolution X5 offers dual-mode operation between iNFINITI TDM or DVB-S2/ ACM on the outbound and ATDMA or SCPC Return on the inbound, providing more flexibility for network design and bandwidth optimization. Whether initially deploying a DVB-S2 network or starting off with an iNFINITI network that is capable of being upgraded to a DVB-S2 network in the future, the Evolution X5 adapts to a customer’s changing requirements. A customer can also temporarily switch from TDMA to SCPC Return without having to swap out the equipment.
With over-the-air software licensing features that can add spread spectrum capabilities, operators are allowed even more flexibility to customize the Evolution X5 to meet their technical and budget requirements.
Increased Efficiency with Superior Quality of Service
iDirect’s sophisticated Group QoS advanced traffic prioritization dynamically balances the demands of different applications according to their needs and bandwidth availability, across multiple sites and user sub-networks. When combining the Group QoS feature set with DVB-S2/ACM, service providers can increase DVB-S2 efficiency gains by combining multiple small networks into a single, larger carrier. Additional configurations, service pricing models, and reporting capabilities allow service providers to translate ACM benefits into new revenue-generating service offerings.
Greater Mobility
Leading spread spectrum technology enables use of ultra small and phasedarray antennas on aircrafts, ships, and land based vehicles. The Evolution X5 is fully enabled for iDirect’s Global Network Management System (GNMS) and Automatic Beam Switching (ABS) technology allowing for a seamless network with truly global coverage.
The Evolution X5’s high-stability oscillator allows for operating in environments with steep temperature changes, making it ideal for mobile applications like cellular backhaul and maritime. Simple, Intuitive Network Management The Evolution X5 Series is easily configured, monitored, and controlled through the iVantageTM network management system, a complete suite of software-based tools for configuring, monitoring and controlling networks from one location.

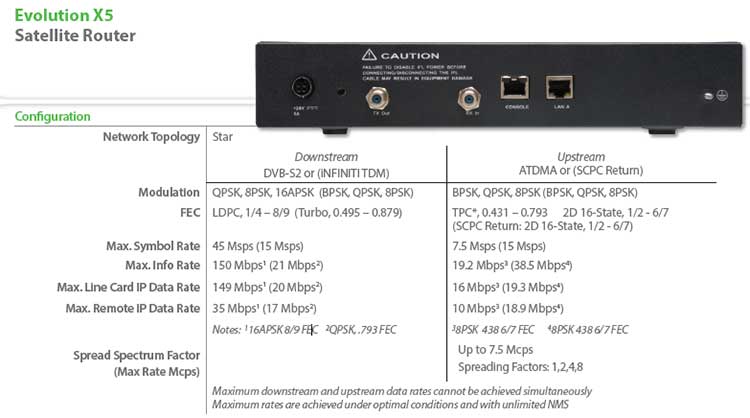

Configuration
Maximum downstream and upstream data rates cannot be achieved simultaneously
Maximum rates are achieved under optimal conditions and with unlimited NMS
SatCom Interfaces TX Out: Type-F, 950–1700 MHz, +7dBm/-35dBm
RX In: Type-F, 950–2150 MHz, -5dBm (max) composite/ -125+10*log(Fsym)dBm (min) single carrier
Software controllable 10 MHz reference on TX Out and TX In ports
BUC IFL Interface +24V, max. 70W, (120W PSU) (please refer to X5 Installation Manual for full list of supported BUCs)
LNB IFL Interface +19V (Nominal), 500mA max
DiSEqC (Voltage 14V/19V + 22KHz tone)
Data Interfaces LAN: Single 10/100, 802.1q VLAN
RS-232: RJ45 (Console connection)
Protocols Supported TCP, UDP, ACL, ICMP, IGMP, RIP Ver2, Static Routes, NAT, DHCP, DHCP Helper, Local DNS Caching,
OpenAMIP, cRTP and GRE
Security AES Link Encryption (256-bit)**
Traffic Engineering Group QoS, QoS (Priority Queuing and CBWFQ), Strict Priority Queuing, Application Based QoS, Minimum
CIR, CIR (Static and Dynamic), Rate Limiting
Other Features Built-in Automatic Uplink Power, Frequency and Timing Control, Authentication, Spread Spectrum** ,
Antenna Control Interface (OpenAMIP)
